Описание
Functions:1. Read the error diagnostic code - generic and vendor specific, and show what they mean (the database has more than 3000 generic code definitions)
2. Clear the error code and turn off the MIL (check engine indicator).
3. Display current sensor data, including:
- Engine speed per minute (RPM)
- Calculated load values
- coolant temperature
- Fuel system status speed.
- Short term fuel situation
- Long term fuel situation
- Intake manifold pressure
- Injection advance time
- Intake temperature
- Air velocity
- Absolute position of throttle
- Oxygen detection voltage associated with short term fuel state
- Fuel system status
- Fuel pressure
- There are many other data for fuel consumption monitoring.
Specification:
Communication: Bluetooth 4.0
Master Chip: PICI8F25K80
Support System: IOS, Android, Symbian, Windows
Working Voltage: 9v ~ 16v
Working Current: 35mA
Standby Current: 25mA
Operating temperature: -40℃~ 85℃
Working Humidity: less than 60%

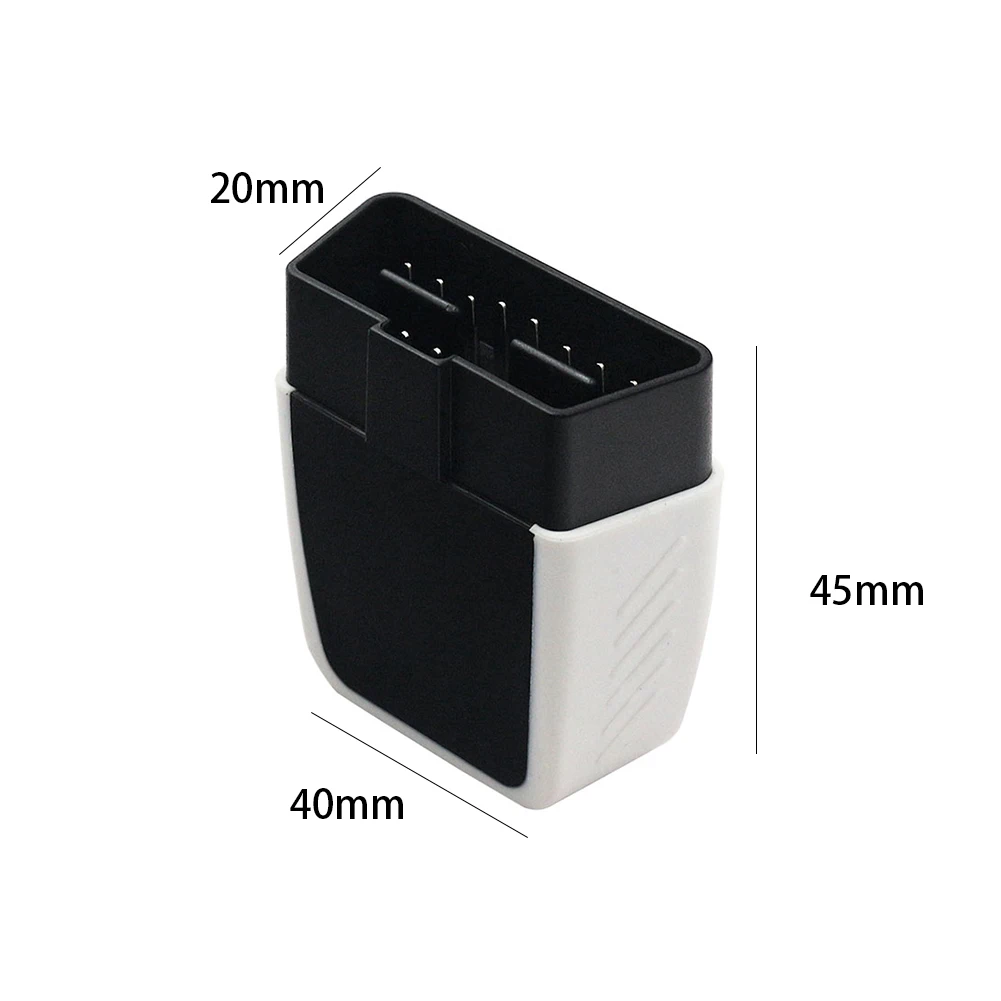

Size: 45mm * 40mm * 20mm
Package Includes:
1pc*Mini OBD2 Bluetooth 4.0
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-2 cm differences due to manual measurement.
Характеристики
- Бренд
- Woopower
- Версия аппаратного обеспечения
- No
- Версии программного обеспечения
- No
