Автоматическая зарядка прочные части 125A 12V VSR батарея изолятор яхта лодка корабль инструмент Напряжение чувствительный релейный модуль Винт Led

Description:
Automatic charing relay help avoid dead battery.
Automatically combines two batteries when charging and isolates the two batteries when not charging.
No voltage drops comparing to battery isolator diodes (0.6V).
Robust glass fiber reinforced nylon enclosure.
Built-in LED indication (ON when VSR engages).
Port for remote LED indicating VSR status (LED not included).

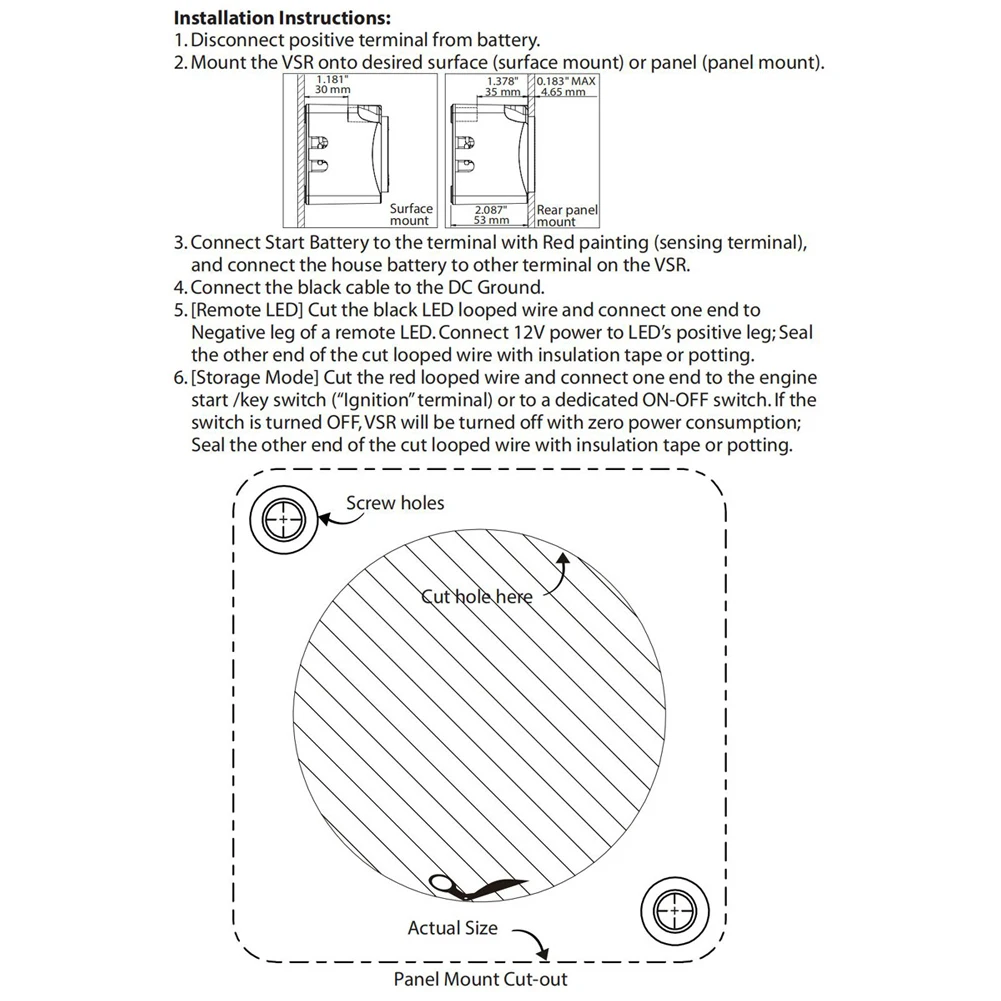

Surface or panel mount options provides flexibility when installing.
Storage mode allows zero power consumption when engine is off.
Specification:
Name: Voltage Sensitive Relay (VSR)
Material: Nylon
Color: Black

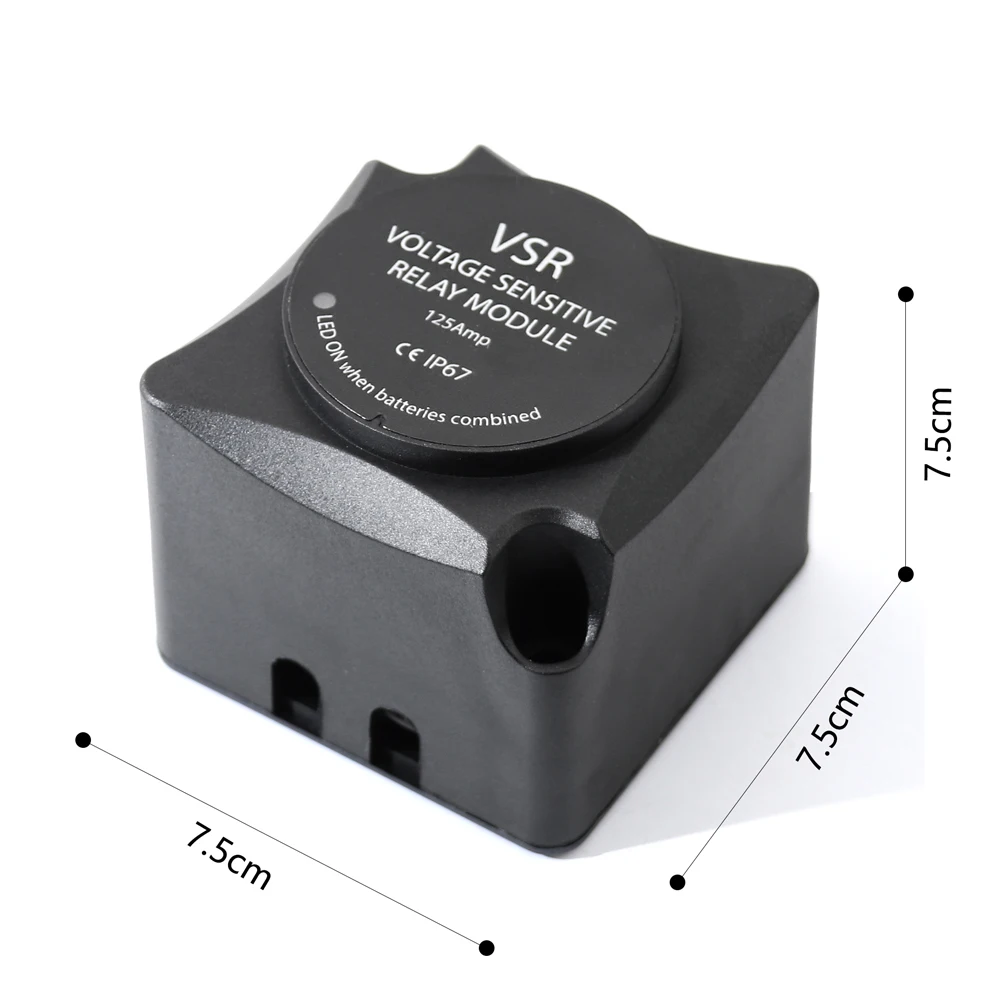

Size(approx): 7*7*6 cm
Nominal Voltage: DC 12V
Combine / Open Voltage: DC 13.3V / 12.8V
Continuous Current Rating: 125A
Intermittent Current Rating: 140A
Power Consumption: 10mA (Standby) / 330mA (Engage) / 0mA (Storage Mode)
Certification: CE IP67
Package:
1 pc x Voltage sensitive relay
4 pcs x Screws
1 pc x Manual
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-2 cm differences due to manual measurement.
