Description:
1. Real-time monitoring of the air pressure, temperature, drum kit, etc. of your car tires, automatically update the monitoring data, and immediately alert the alarm.
2. Built-in high temperature explosion-proof polymer lithium battery, fast charging, long lasting power.
3. Charging protection function, effective safety protection and prolong service life.

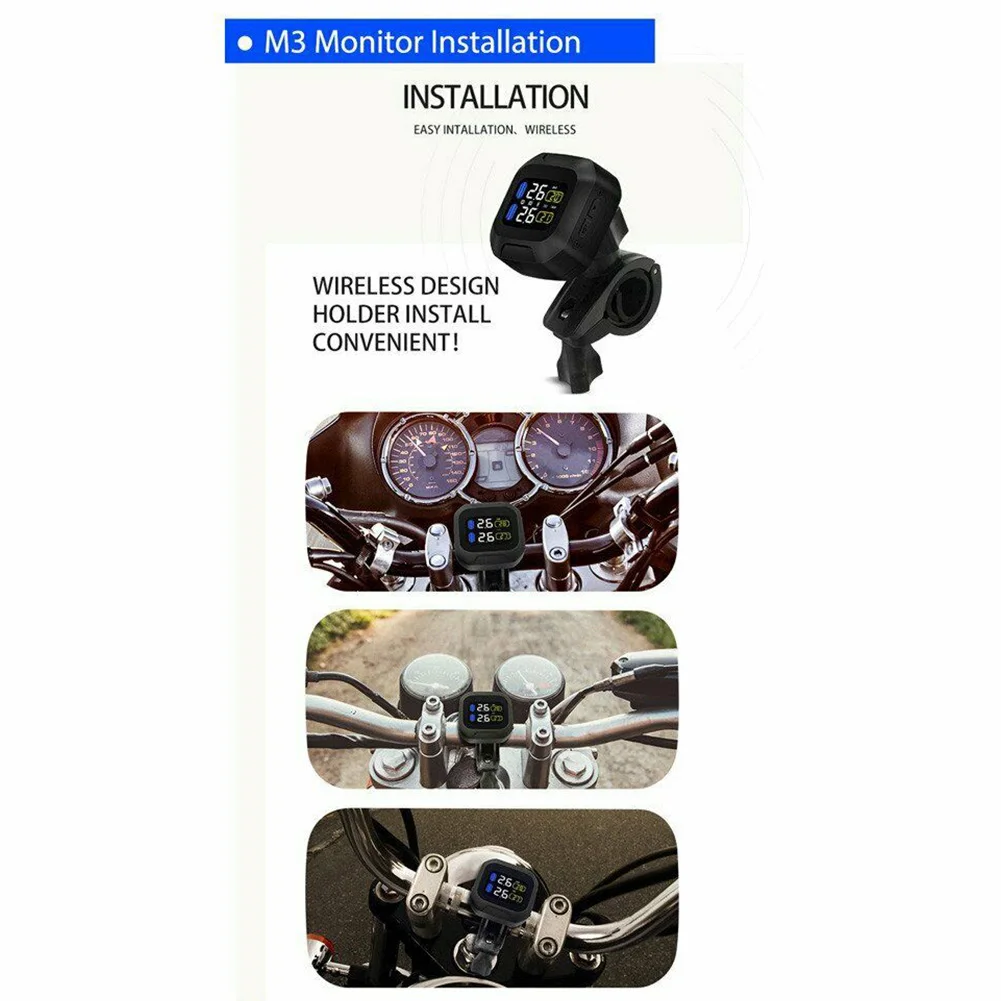

4. Wireless transmission design, the bracket installation method is convenient and convenient.
5. Two units of pressure (PSI / BAR) and temperature (Deg.C / Deg.F) to select.
6. Independent sensor ID number, directly install and use.
7. Supports alarming value range setting.
8. Supports tire position exchange function.
Specification:
Product name: Tire Pressure Monitor
Color: Black
Material: Hardware Electronics + Plastic
Model: External Sensor, Internal Sensor
Standby current: 1μA
Operate current: 15mA
Pressure testing range: 0 - 8 BAR (0 - 116 PSI)
Temperature testing range: -40 Deg.C - ＋120 Deg.C
Emission frequency: FSK433.92MHz
Power supply: Built-in polymer 800 mA capacity lithium battery
Voltage: 3.7V
Operating temperature: (-20 ℃ ~ +80 ℃)
Storage temperature: (-30 ℃ ~ +85 ℃)
Receiving frequency: 433.92MHz
Size: About 48 x 48 x 27mm
Sensor parameters:
Working temperature: (-40 ℃ ~ + 105 ℃)
Storage temperature: (-40 ℃ ~ +120 ℃)
Pressure range: 0 ~ 116psi (0 ~ 8bar)
Pressure accuracy: ± 0.15PSI (± 0.01bar)
Temperature accuracy: ± 3 ℃
Transmission frequency: 433.92MHz
Power supply: Built-in 50 mA CR1225 Button Battery
Battery voltage: 3V
Size: About Height: 13mm, Diameter: 18mm

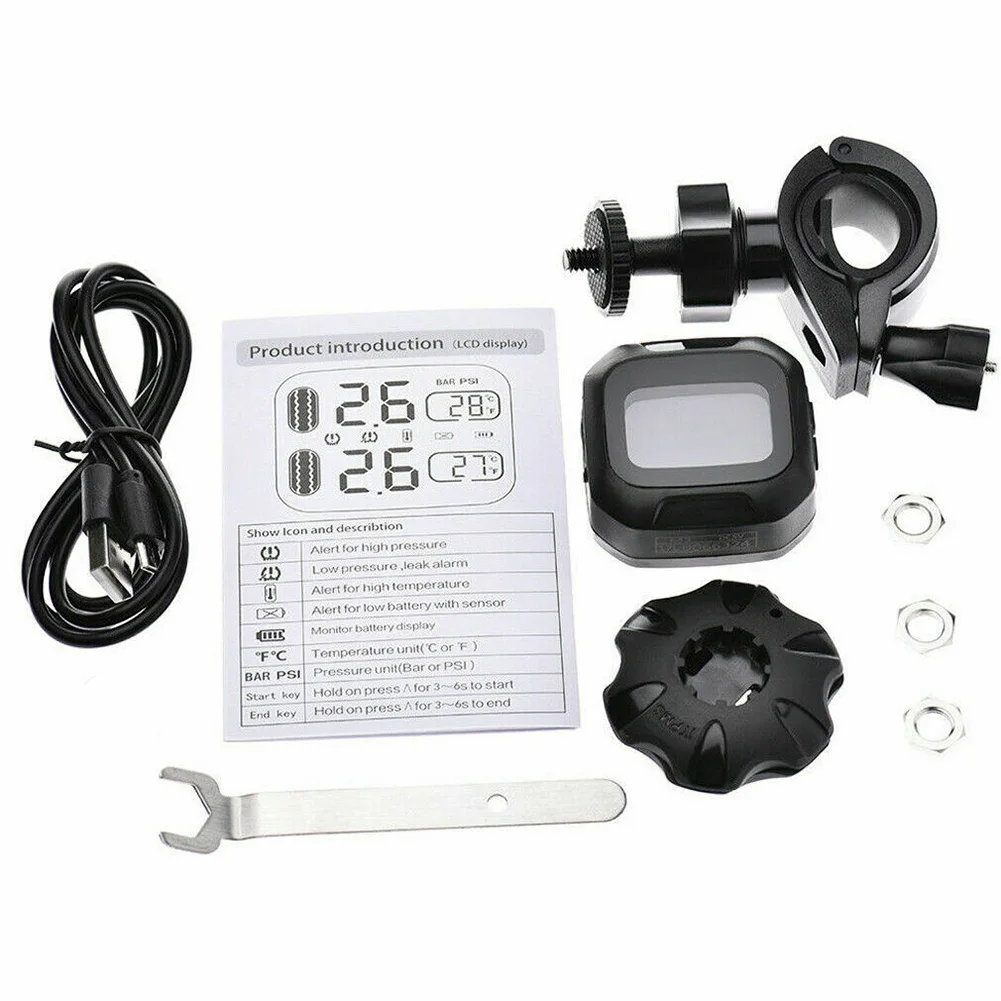

Package included:
1Pc x Tire Pressure Monitor
2Pcs x Senser
2Pcs x Theftproof nut
1Pc x Bracket
1Pc x USB charging cable
1Pc x Spanner
1Pc x Wrench
1Pc x English User Manual
Notes:
Transition: 1cm=10mm=0.39inch
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
2. Please allow 1-3 cm measuring deviation due to manual measurement.Thank you for your understand.
