Features:

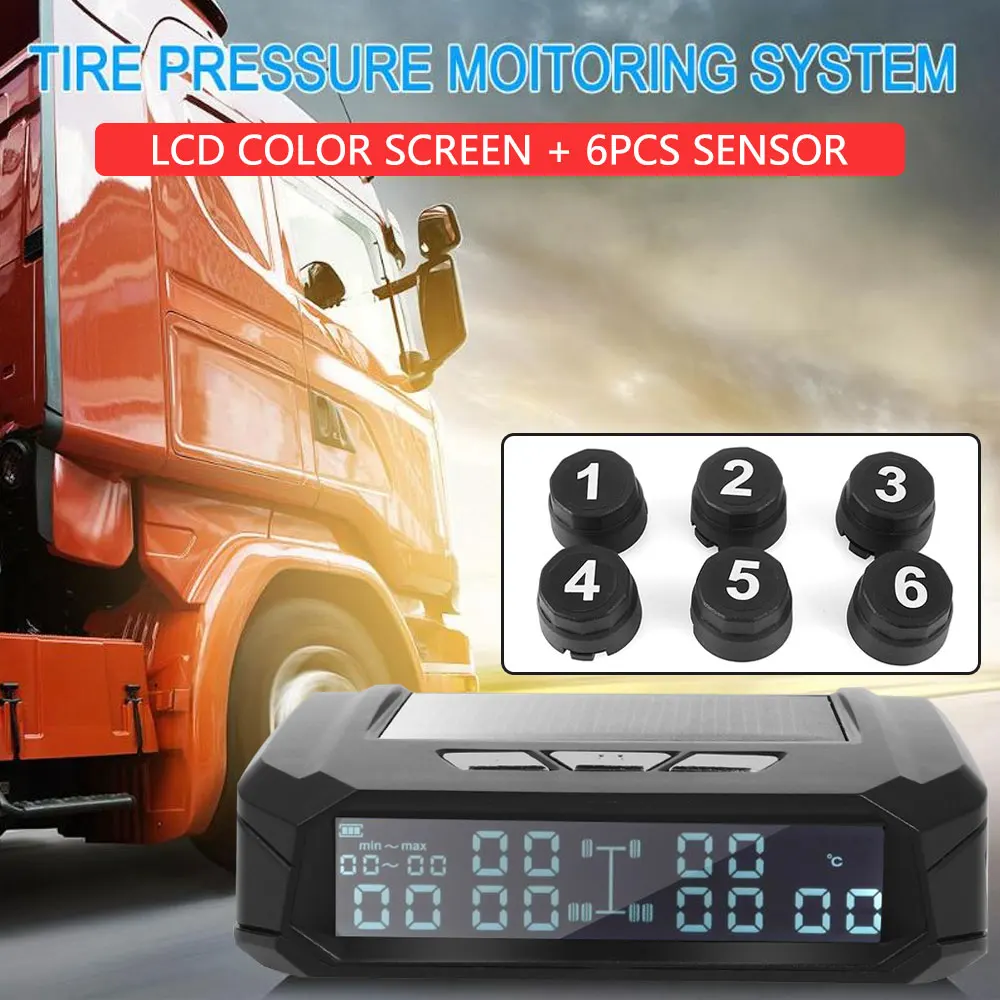

* 6 Wheel sensors for trucks, tire pressure monitoring value can reach 9.0bar* Real-time monitoring of tire conditions. When tire pressure and temperature are too high or too low, the display will sound an alarm sound and display real-time tire pressure and temperature* When the vehicle starts, the display automatically starts to protect the driving safety at all times* Supports two solar / USB charging methods* Protection level: IP65
Specification:
Material: ABS + PCColour: BlackSensor installation type: external sensorMonitoring temperature range: -40 ℃ ~ 130 ℃Monitoring pressure range: 0.1bar ~ 9.0barTemperature accuracy: ± 2 ℃Pressure accuracy: ± 0.1barWorking frequency: 433.9200MHZ ± 0.1MHZDisplay voltage: 5VDisplay quiescent current: 5uA or lessDisplay working current: 15mA or lessDisplay working temperature: -20 ℃ ~ 70 ℃Display size: 95 * 67 * 30mmSensor voltage: 2.0-3.6VSensor quiescent current: less than or equal to 1uASensor working current: 15mA or lessSensor working temperature: -40 ℃ ~ 125 ℃Function: Tire pressure / temperature monitoring










Packing list:
1 * Monitor6 * Truck sensor1 * USB charging cable1 * Small installation package1 * Instructions
Характеристики
- Бренд
- Vehemo
- Название Модели
- AN-05A
- Тип материала
- ABS + PC
- Тип товара
- Аварийные системы & обеспеченность
- Напряжение
- 2,1-3,5 V
- Display voltage
- 5V
- Sensor installation type
- external sensor
- Monitoring temperature range
- -40 ℃ ~ 130 ℃
- Monitoring pressure range
- 0.1bar ~ 9.0bar
- Temperature accuracy
- ± 2 ℃
- Working frequency
- 433.9200MHZ ± 0.1MHZ
- Sensor voltage
- 2.0-3.6V
- Function
- Tire pressure / temperature monitoring
