4 камеры запасные части ABS 1 Hook-up провод переключатель изображения система вождения автомобиля Парковка канал конвертер коробка видео управление

Description:
Made of ABS plastic, the channel converter box has good performance and durability, it is suitable for most vehicle models.
The system start with rear view mode as default, the trigger priority is from rear view to front view.
When car engine starts, the system will activate the car monitor and all the camera around one by one to check the view around for 6 seconds, and then turn off.
When you pull the reverse gear (Left/Right turning no triggered), the system will activate the monitor and rear view camera till the reverse gear back, then switches to front view camera and shut off after 6 seconds.
Front view mode is controlled by switch. Press the control switch for about 2 seconds, car monitor and car front view camera will be working all the time, if no other trigger working. And then you could shut off the front view video by re-press the control switch for 2 seconds.
Press the control switch less than 1 second to enter side view mode.
When you turn on the turning switch, this system will activate monitor and side view camera (Left/Right side view camera is controlled by Left/Right steering lamp). The monitor and camera will turn off after 1.5 seconds when steer turning is finished.
Specification:
Color: black
Material: ABS
Resolution: 648x480
Power supply voltage: 9-12V
Power: 5W
Angle adjustment: 170 degree
Screen display: NTSC/ PAL
View: front-view, rear-view
Application: universal
Package included:
1pc x channel converter box

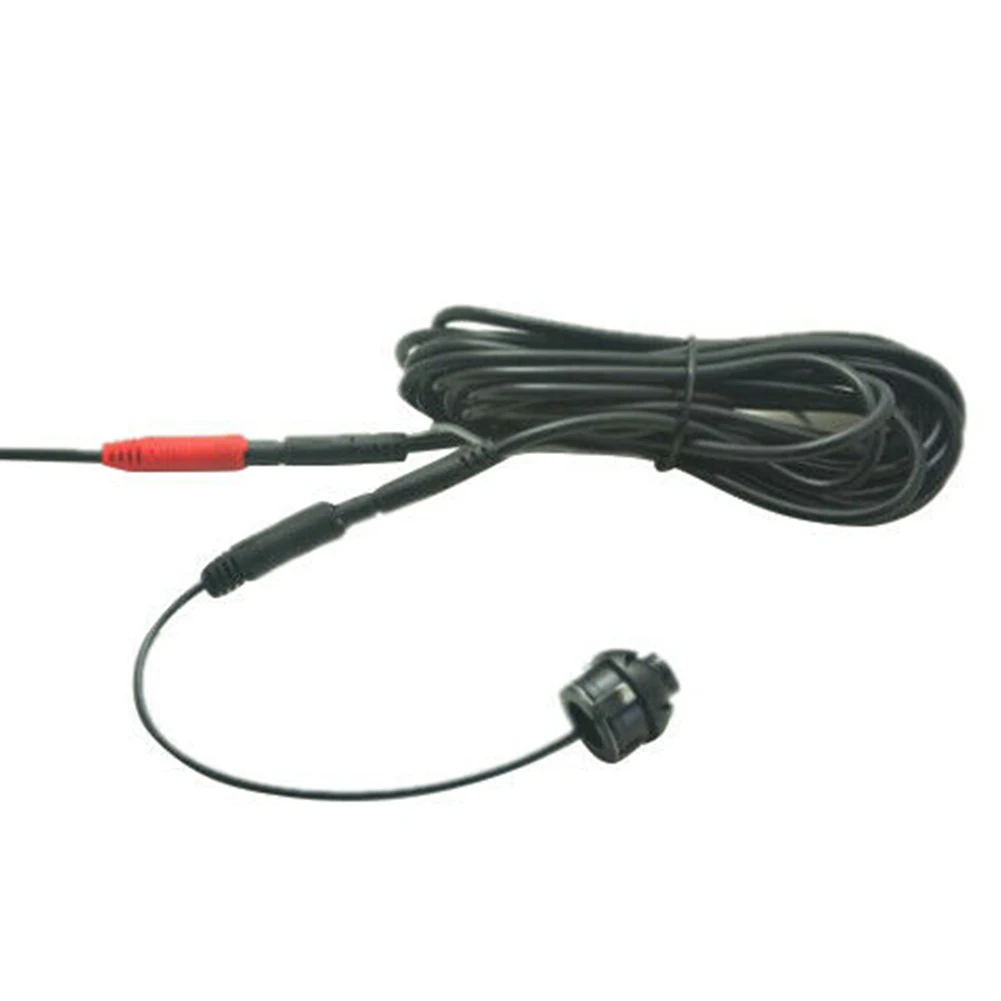

1pc x hook-up wire
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow slight deviation for the measurement data and make sure you do not mind before ordering.
3. Power On Self Test
When the ACC power is turned on, the system will enter a self-test without a reversing trigger, let the rear and front cameras light up for two seconds each in order, and finally enter the front view display. After 6 seconds, no other trigger will automatically turn off camera. During the self-test, if there is a reverse trigger, the self-test will be automatically terminated and the corresponding trigger function will be displayed.
4. Two-way mode
A. When in reverse gear, display the back, leave (without delay) display 6 seconds in front, and close automatically after 6 seconds.
B. Tap the button once to turn on the front view normally open mode, and then tap the button again to turn off the front view.
5. Trigger Priority: rear view > front view
6. Key functions: Press the button once to open the forward-looking normally open mode, and then press the button again to close the forward-looking mode.
