Однополюсная лодка Руководство Серии A Запуск для автомобиля Замена МНОГОЦЕЛЕВОЙ ГИДРАВЛИЧЕСКИЙ магнитный выключатель электрический тумблер

Description:
The current 40A can solve your disconnection troubles, because the overload protector can be reused, and the cost is greatly reduced, your overhead costs.

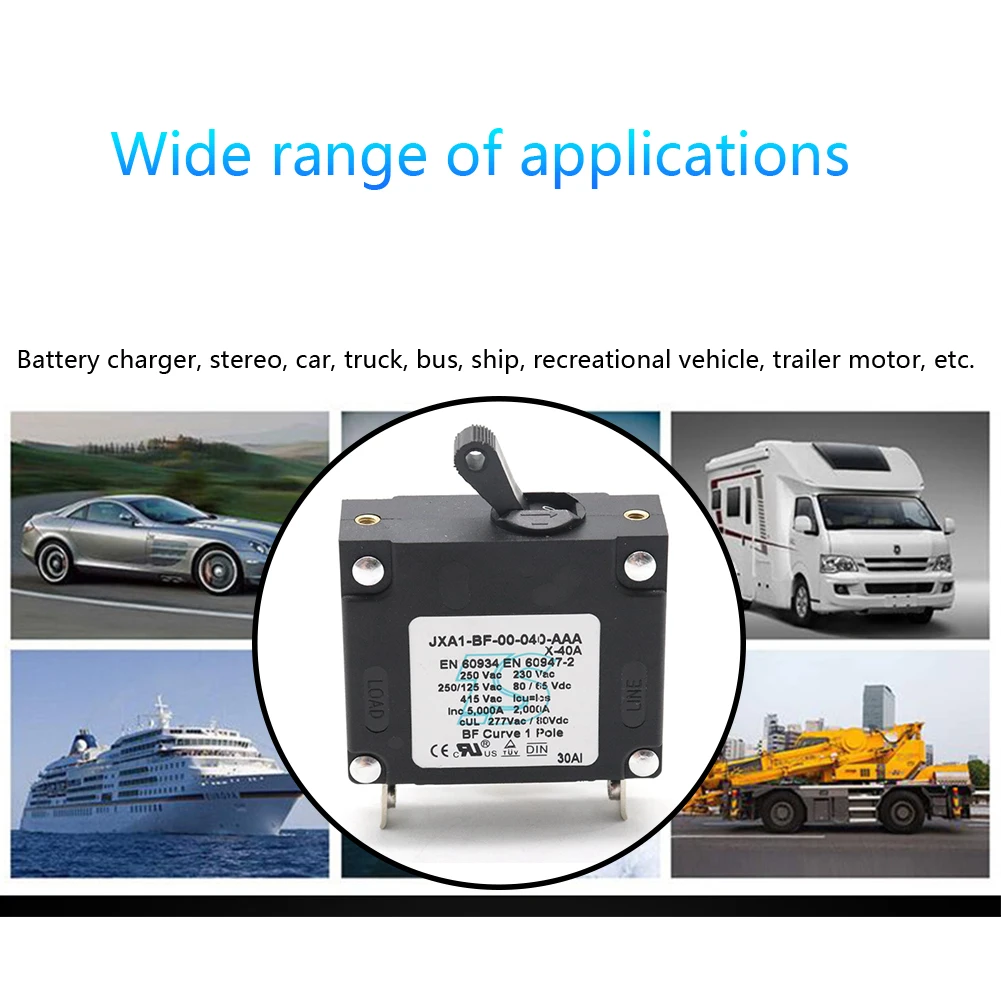

Wide range of applications, for battery chargers, audio, cars, trucks, buses, ships, recreational vehicles, trailer motors, etc.
Easy to install, overloaded in a protective shape, mini compact, can be installed with a single click.
Electrical wood, bakelite has high mechanical strength, good heat resistance and corrosion resistance.
Small size, can be carried around, does not take up space, can be used by connecting wires, plug and play.
Specifications:
Product name: Hydraulic magnetic circuit breaker
Color: Black
Rated current: 40A
Voltage: 125/250/277/415 / 480Vac; 65/80 Vdc
Installation: After installing,
Operating temperature: -40oC (-40oF) to 85oC (185oF)
Outage capacity:
5,000A (PC1)
3,000A Vac SC 250 @ (SC)
1,000A Vac SC 415 @ (SC)
2,000 A @ 80 Vdc of SC (SC)
Management range: cUL1077; EN60934; EN60947; DIN ; CE
Impact: 50G, 11ms or 100G, 6ms
Vibration: 10 to 500 Hz. 10G (1.6 mm to 50 Hz)
Life: 10,000 instrument switch, 6000 the current rate of
The Dielectric Street: 2,500 Vac 50/60 Hz
Rated current: 1-100A request is
inserted into the screw allowable torque: M3 / 6-32 (0.6'0.8 Nm)
Size: About 51 x 44 x 19mm
Package Included:
1PC x Hydraulic magnetic circuit breaker
2Pcs x Screws
Note:
Transition: 1cm=10mm=0.39inch
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
