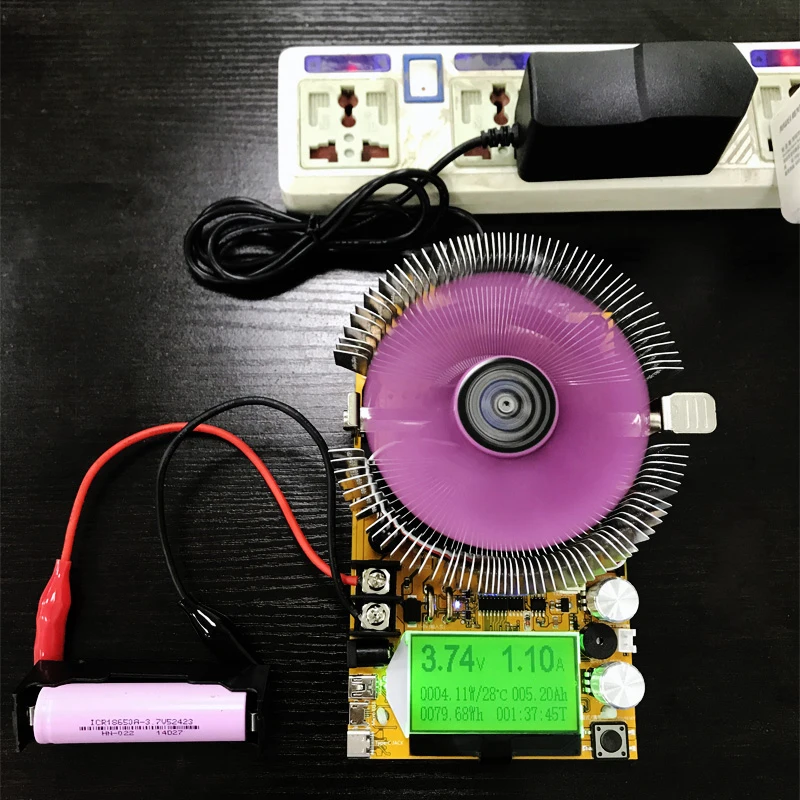

8 в 1 150 Вт измерительный прибор USB Цифровой регулируемый постоянный ток электронный тестер емкости батареи Вольтметр индикатор нагрузки зарядного устройства

Описание

8 in 1 150W usb meter Digital battery capacity tester voltmeter adjustable constant current electronic load charger indicator

Features:

Widely Use
This baby can measure the voltage, current, power, capacity, power, discharge time of various batteries, various DC power supplies, various data lines, various charging treasures, various chargers, various AC/DC power adapters, Internal resistance, load capacity and other performance.
Versatile and flexible
The function is more than the thousand yuan electronic load meter, and the volume is relatively smaller, the use is more flexible, very suitable for factory verification, digital enthusiasts, engineers and other intimate instruments.
Prevent burning
When inputting high-voltage battery and large-scale power supply test, the two current knobs must be adjusted counterclockwise to the minimum to zero before being used. After the access, the current knob should be adjusted slowly according to the display current power. The big adjustment is full, so there is a huge risk that the instantaneous power is too large and the load will burn the discharge tube.
Precise
The tester machine is used to measure voltage, current, capacity accumulation, cumulative power, power, impedance, temperature, etc. The resolution accuracy is 0.01, which is precise.
Durable
The voltmeter is made of high-quality plastic, which is durable, wear-resistant and eco-friendly.

Specification:
Type: 150W Voltmeter Tester
Quantity: 1pc
Material: Plastic
Color: As shown
Input interface / output interface: 100A large current occluding screw column
Voltage measurement range: 0.00V~200V resolution accuracy: 0.01V
Current measurement range: 0.00A~20A resolution accuracy: 0.01A
Capacity accumulation range: 0~999.999Ah resolution accuracy: 0.01Ah
Cumulative power range: 0~9999.9Wh resolution accuracy: 0.01Wh
Power measurement range: 0000.00~150/180 W resolution accuracy: 0.01W
Impedance measurement range: 1~999.9, European resolution accuracy: 0.01 Euro
Temperature measurement range: 0~99 degrees Celsius, 0~99 degrees Celsius, resolution accuracy: 1 degrees Celsius
Maximum time: 999 hours, 59 minutes, 59 seconds, resolution accuracy: 1 second
Timing measurement reminder settings: countdown, 24 hours arbitrary settings
Small current standby warning threshold parameters and timing: 0.5W began clocking
The DC voltage of the 4~30V range supplies power to the measuring system
Refresh time: >500mS/ times > 500mS/ times
Measuring speed: about 0.5 times per second
Overvoltage and overcurrent setting alarm mode: display alarm interface to remind users
Overpressure warning setting: 1~200V
Low voltage reminder setting: 0~190V
Overflow reminder setting: 0.2~100A
Display type: micro power LCD module, LCM black font, green backlit Chinese and English display
Operating temperature: -10~+60 degrees Celsius, -10~+60 degrees Celsius
Working humidity: 10~80 (no doubt) 10~80 (no doubt)
Working pressure: 80~106kPa
Size: 15.6*9.6*5.8cm/6.1*3.8*2.3inch
Net weight: 450.0g/15.87oz

Package:
1 * 150W Voltmeter Tester
