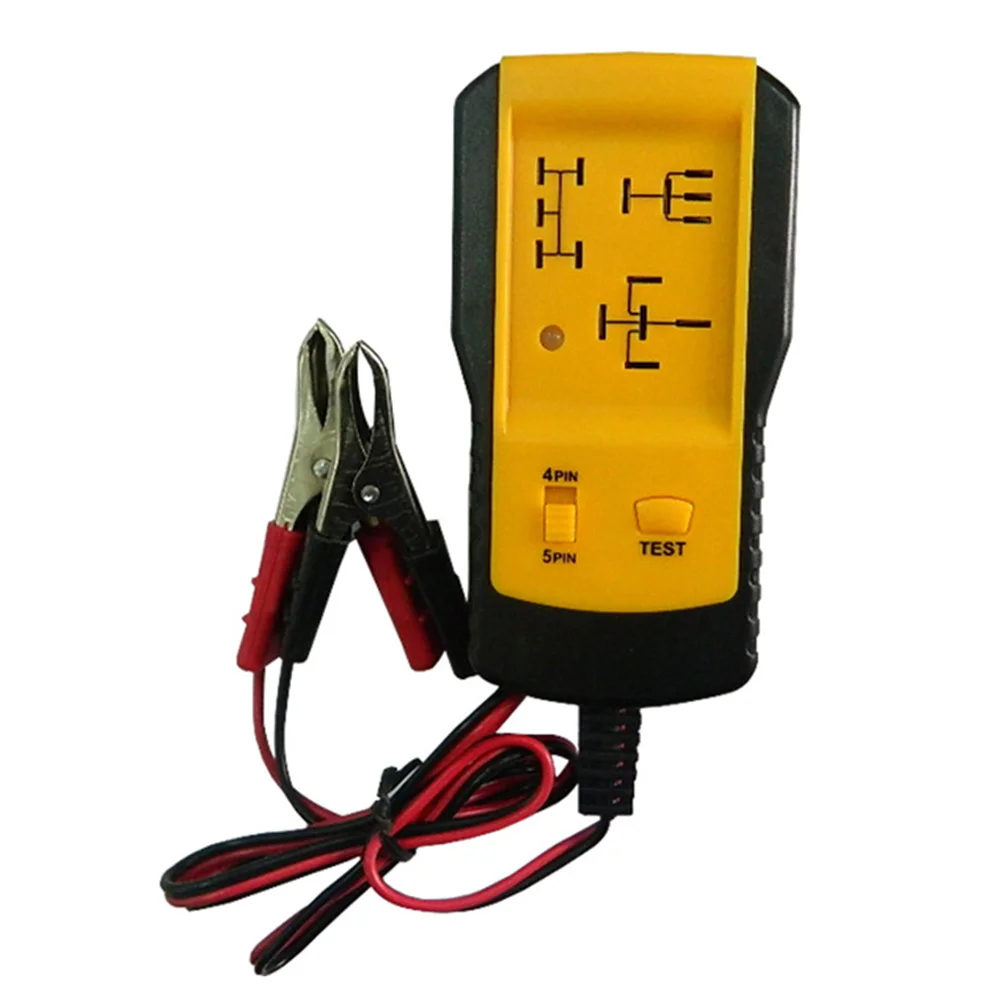

AE100 12 В батарея диагностический Автомобиль Автомобильный электронный инструмент универсальный авто Реле Тестер

Description:
100% brand new and high quality!
It's is a quick go tester for relays that provides you with an indication of the general health and functioning of the most common Automotive relays.
Tester will check for proper functioning of the relay by connecting the car battery (11V--15V) to the relay coil.
Tester will watch the pin configuration, the time to closure and opening, consistency of the relay during each test session.
Tester will light the GREEN LED if all passed during the test session, if not light the RED LED.
Specifications:
Item type: Car Relay Tester
Material: plastic.
Color: yellow.
Power: 12V
Voltage: 11-15V
Indication light: Red(Unnormal); Green (Normal)
Quantity: 1pc.
Operating Instructions:

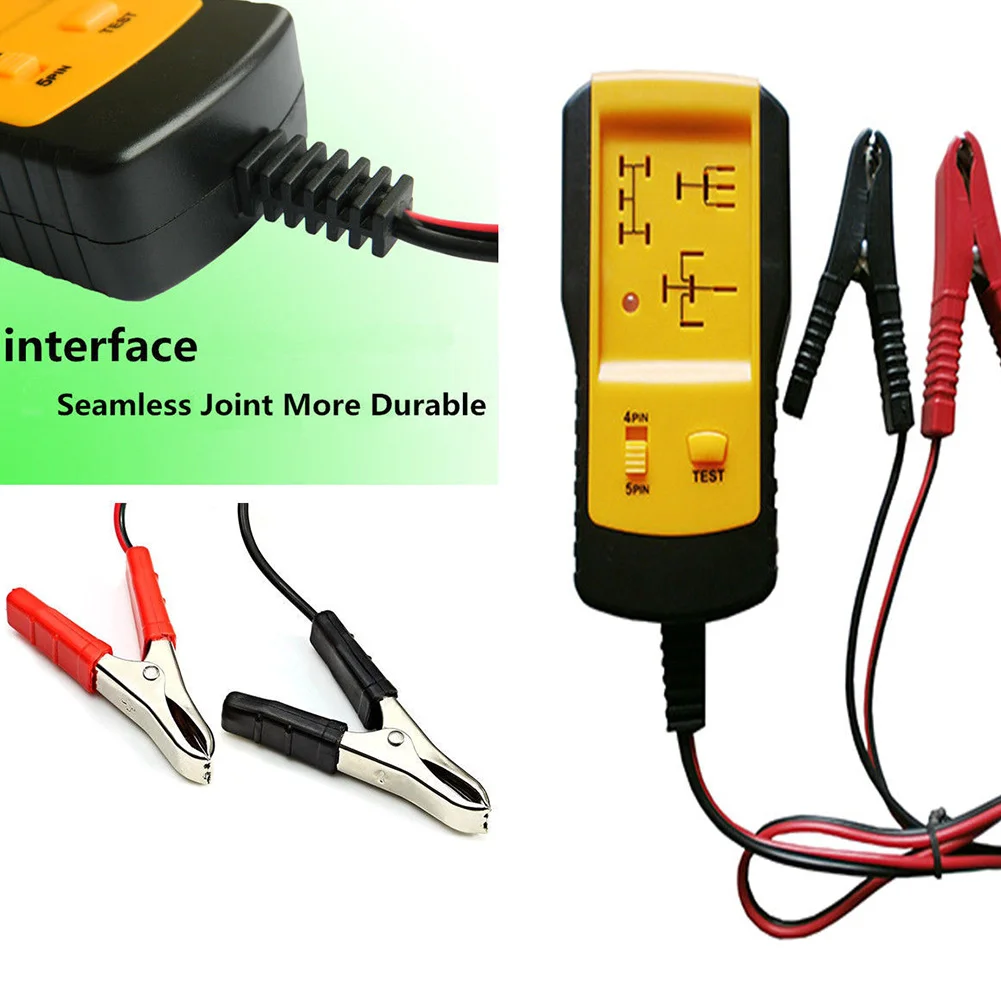

1.Connect the power leads to the car battery -- black alligator clip to negative terminal, red alligator clip to positive terminal.
2.Tester is powered up when the LED illuminates in RED.
Check the relay before plugging into the tester. If it’s a 4 pin relay, select “4 pin” on the tester. If it’s a 5 pin relay, select “5 pin” on the tester.
3.Plug in the relay into one of the three receptacles.
Press the “Test” button.
4.Tester will check the pin configuration of the relay. Tester will light the RED LED if the relay is not the same to the most of common automotive relays or the pin of the relay is destroyed.
5.Tester will open and close the relay 10 times for testing the time to closure and opening if the pin configuration of the relay is right. Tester will light the RED LED immediately if the time is overtime.
6.Tester will check the consistency of the relay after testing the time to closure and opening ten times. Tester will light the GREEN LED if the test passed, if not light the RED LED.
7.Disconnect power leads from the car battery and remove relay from the tester.

Package includes:
1* Automotive Relay Tester
1* User manual
Notes:
Transition: 1cm=10mm=0.39inch
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.
