Описание

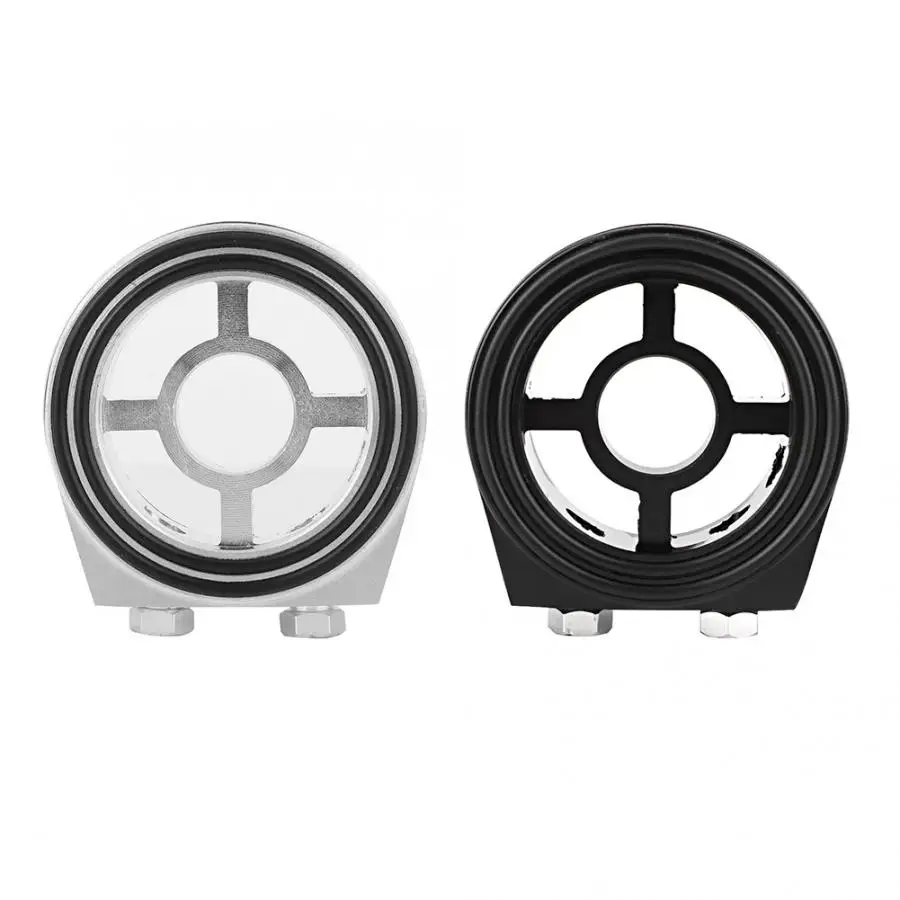

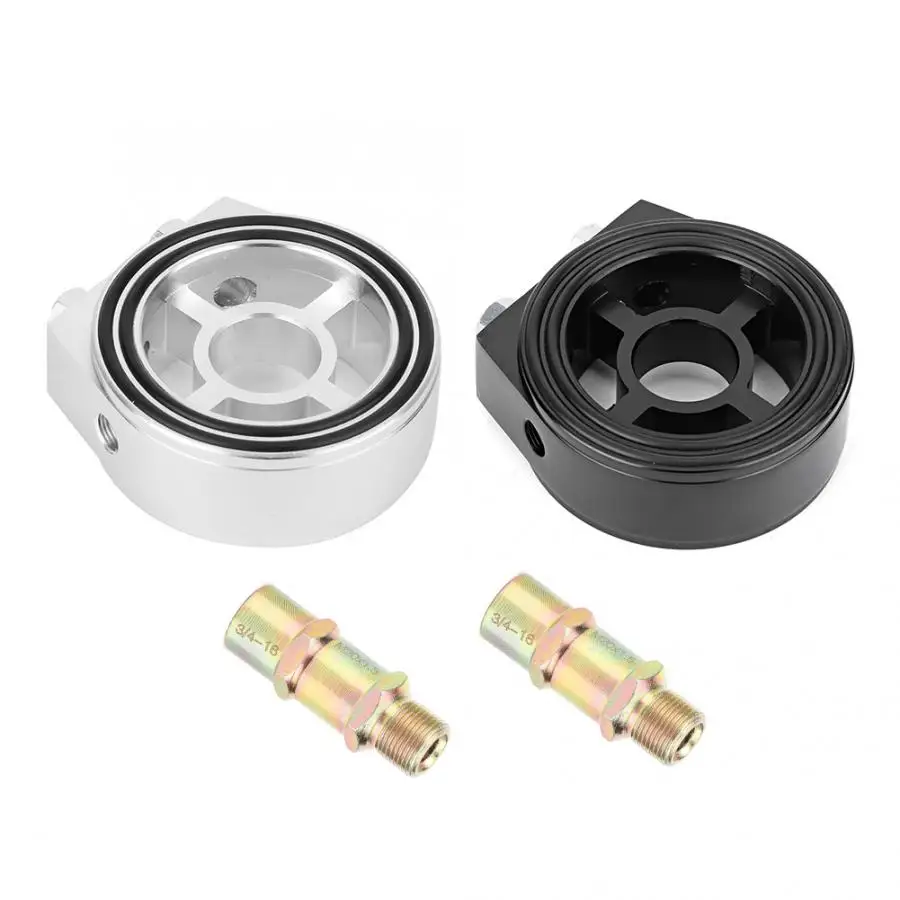

Oil Filter Pressure Gauge Plate Adapter Oil Thermometer Accessories
Feature:

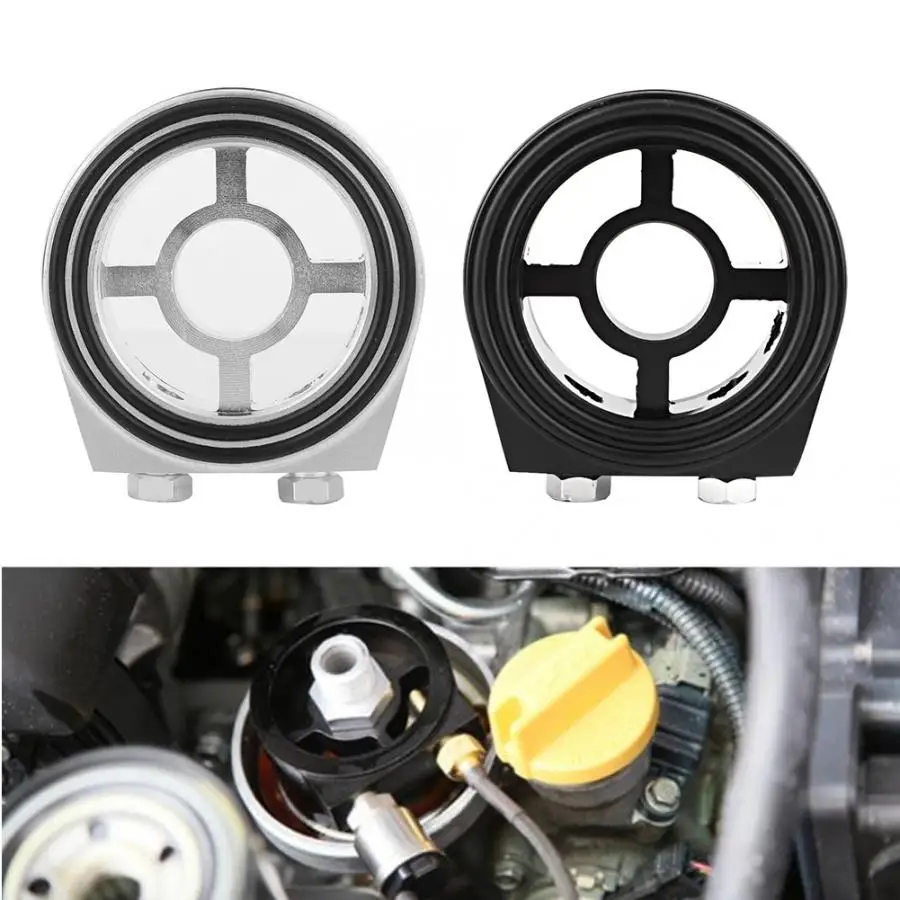

1. This adapter allows the engine oil cooler to be installed without repositioning the oil filter and retains the function of the oil temperature and/or pressure probe.2. It is installed between the oil filter and the filter base on the engine block to provide a pressurized oil source for the engine oil cooler.
3. The adapter is lightweight, anodized and polished, and wear resistant.
4. Made of CNC billet steel T-6061 aluminum. Provides import and export with 8 connectors.
5. Support many different types of oil filters and engine blocks.
6. Support for oil filters with M20 thread and M20 block fittings.
7. 3 ports: 1/8 US standard taper pipe thread for conveying oil to turbochargers, oil cooling, instruments, sensors or other accessories.
Specification:
Condition: 100% Brand New
Item Type: Oil Pressure Gauge Plate
Optional Color: Black, Silver
Material: CNC Steel + T-6061 Aluminum
Diameter: Approx. 3in (76mm)
Thickness: Approx. 1-1/8in (28mm)
O-ring: Approx. 2 3/4in
Center Adapter: 20 MM-1.5 Thread
Size: Approx. 79.5 x 79.5 x 28.5mm/3.13 x 3.13 x 1.1in
Application: M20 x 1.5 threaded engine block and oil filter (for most Japanese vehicles)
Item Type: Oil Pressure Gauge Plate
Optional Color: Black, Silver
Material: CNC Steel + T-6061 Aluminum
Diameter: Approx. 3in (76mm)
Thickness: Approx. 1-1/8in (28mm)
O-ring: Approx. 2 3/4in
Center Adapter: 20 MM-1.5 Thread
Size: Approx. 79.5 x 79.5 x 28.5mm/3.13 x 3.13 x 1.1in
Application: M20 x 1.5 threaded engine block and oil filter (for most Japanese vehicles)
Package List:
1 x Oil Pressure Gauge Plate1 x Accessory














Характеристики
- Бренд
- Qiilu
- Развязка Номер детали
- Oil Filter Plate
- Страна/регион производства
- Oil Filter Base
- Номер детали производителя
- Oil Pressure Gauge Plate
- feature 1
- Oil Thermometer Accessories
- feature 2
- Oil Pressure Gauge Adapter
- Material
- CNC Steel + T-6061 Aluminum
- Optional Color
- Black Silver
- Diameter
- Approx. 3in
- Thickness
- Approx. 1-1/8in
- O-ring
- Approx. 2 3/4in
- Center Adapter
- 20 MM-1.5 Thread
