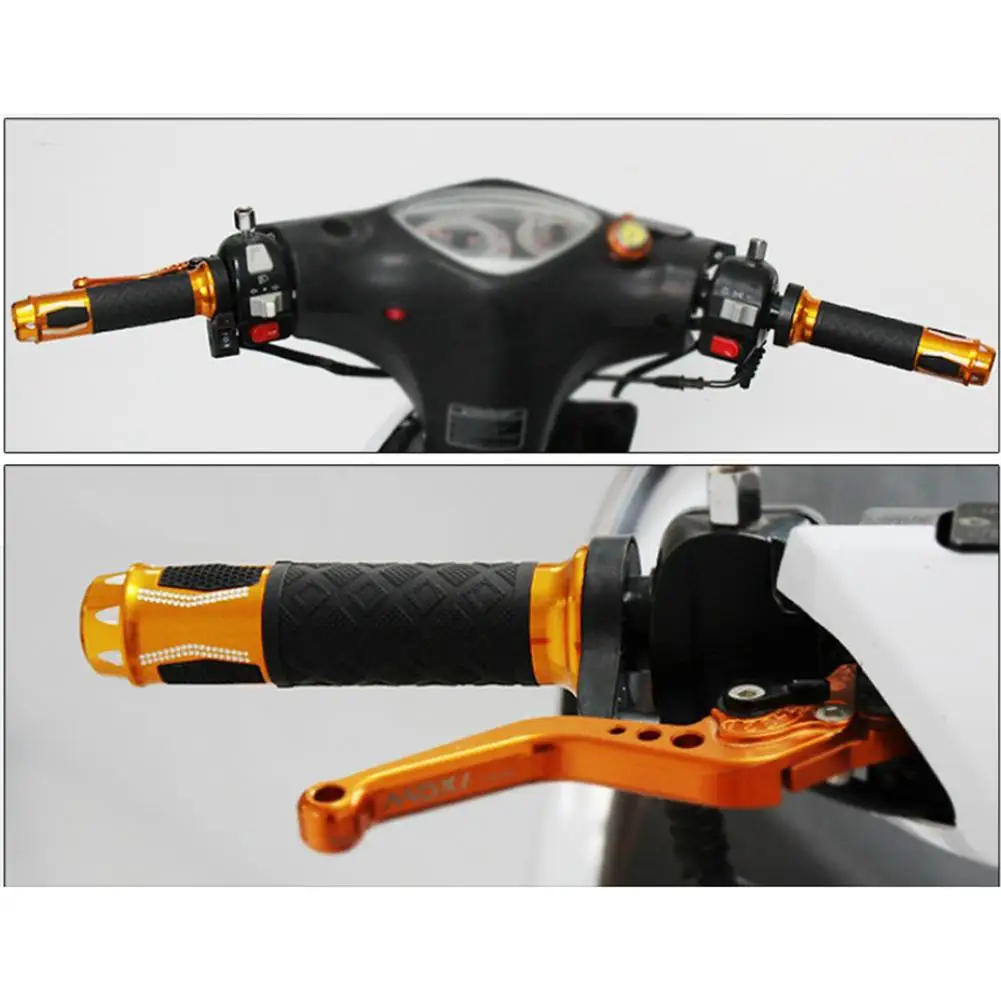

Motorcycle Electric Heating Handgrip For Scooter Modification Adjustable Winter Warm Handlebar With 2 Gears
Bullet Points:
1、The 22MM/0.87in diameter handle is suitable for most 12V voltage motorcycles.2、The product is equipped with a high and low gear switch, and the handle temperature can be adjusted freely (50℃-70℃).
3、Double throttle line buckle, and wider installation scope.
4、The mouth design does not affect the external handlebar plugging outside, so it is more beautiful and convenient.
5、Cool and fashionable appearance.
Description:
Product name: 1 pair of electric heating handlebars
Net weight: about 250g
Gross weight: about 430g

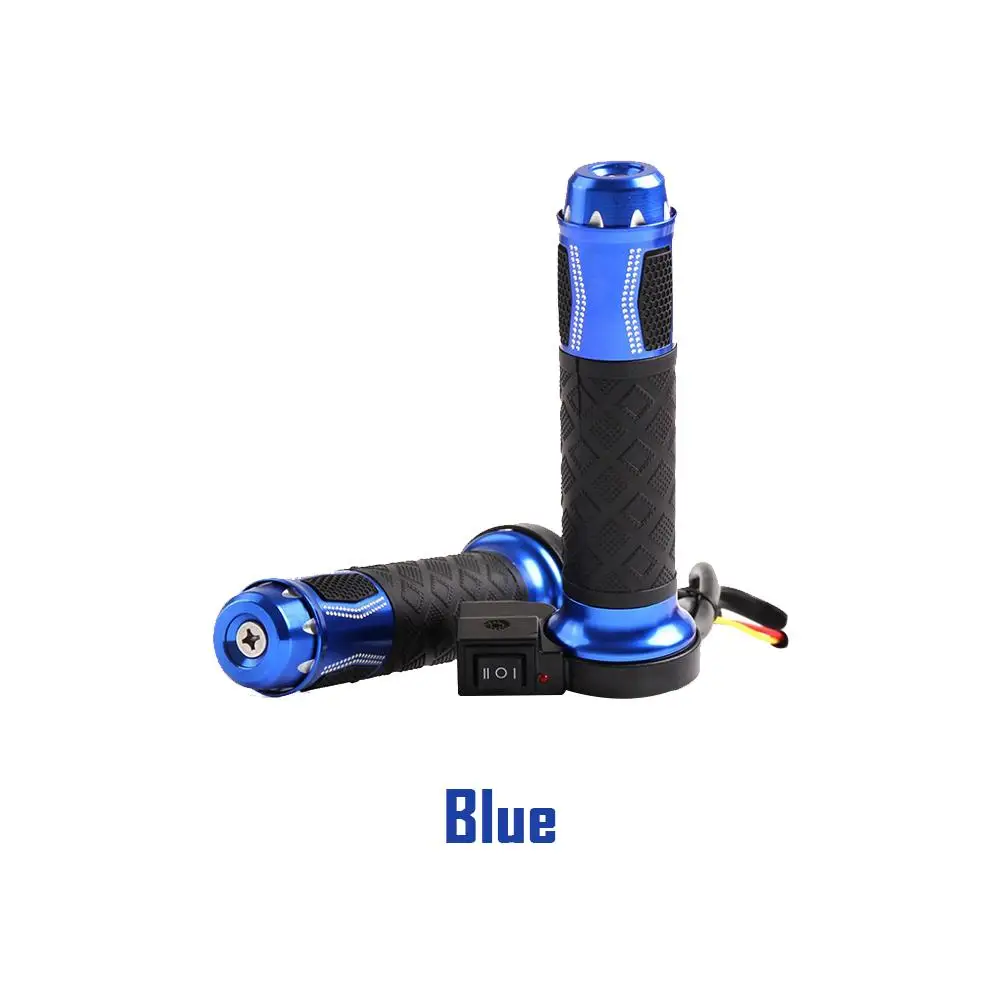

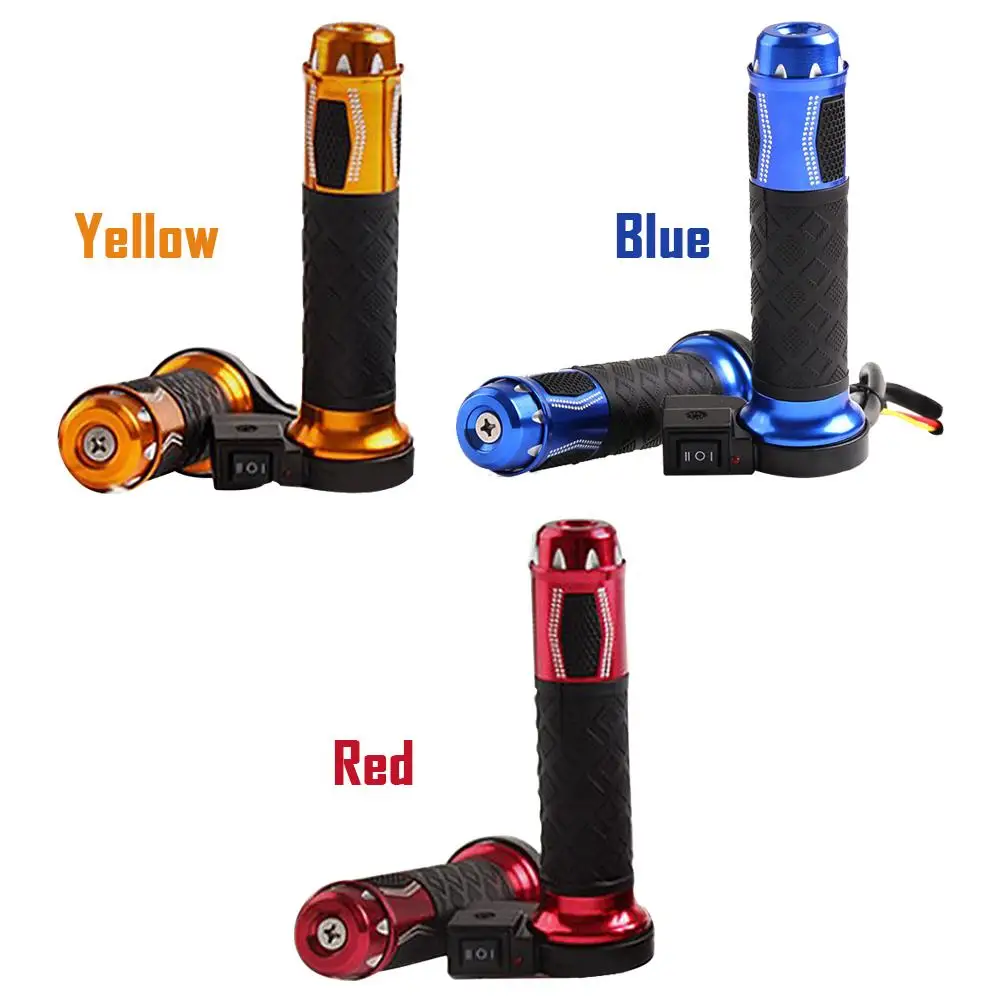

Product color: yellow, red, blue
Handgrip length (Approx.): left hand: 156mm/6.14in, right hand handle: 166mm/6.54in
Handgrip diameter: about 36mm/1.42in
Input voltage: 12V
Product power: 25W
Handgrip temperature: 50℃-70℃
Switch type: two-gear adjustable switch
Applicable model: 12V motorcycle with about 22MM/0.87in diameter handgrip
Matters needing attention:
1. When install the left handgrip, do not twist the handgrip too much, because excessive twisting will cause electric wire displacement.
2. For the model with balancing iron, please adjust the installation position of balancing iron. Do not squeeze the handle when tightening the screw, and the balancing iron is slightly separated from the handle. If the installation position of the balance iron can not be adjusted, please separate the balance iron from the handgrip by adding gaskets. Excessive extrusion of the handgrip will cause difficulty in switching the handgrip and abnormal damage to the surface of the handgrip extruded by the electric heating wire.
Installation instructions:
1.Remove the original handgrip.
2.The inner hole of the left handgrip is moistened with soap water, and the amplitude of twisting is not too large when installed.
3.When install the balance iron with the left handgrip, the position of the balance iron is adjusted to be slightly separated from the handgrip, and the handle cannot be squeezed when tightening the screw.
4.Use the middle left handgrip, slide on the steel pipe, remove the balance iron and fix the tail with a few drops of 502 glue.
5.The power cord: the red wire is connected to the positive pole, the black wire is connected to the negative pole, since the temperature can not be adjusted in the case of reverse connection.
6.Leave enough rotation wires when install power cord for the left handgrip.
Product Advantages:
The 22MM/0.87in diameter handle is suitable for most 12V voltage motorcycles.
The product is equipped with a high and low gear switch, and the handle temperature can be adjusted freely (50℃-70℃).
Double throttle line buckle, and wider installation scope.
The mouth design does not affect the external handlebar plugging outside, so it is more beautiful and convenient.
Cool and fashionable appearance.
Package Including:
2x motorcycle warm handgrip
1 x connection cable
Характеристики
- Марка мотоцикла
- Yamaha
- Drop shiping
- support
- product name
- 24B electric hand handle
- product color
- yellow, red, blue
- hand length
- left hand: 156mm; right hand: 166mm
- handle diameter
- 36mm
- Input voltage
- 12V
- product power
- 25W
- Handle temperature
- 50 ° C -70 ° C adjustable
- Switch Type
- Second gear adjustable switch
- Applicable models
- Handle 12V motorcycle with diameter of 22MM
- feather2
- motorcycle warm hands grips
- feather1
- Adjustable
