3-дюймовый ЖК-дисплей Экран машина OBD шин безопасности Предупреждение Системы шины Давление мониторинга

Описание

3 Inch LCD Screen OBD Vehicle Tire Safety Warning System Tires Pressure Monitoring

Features:

This is a car LCD Screen OBD Tire Safety Warning System, made of high quality material. 2 functions of HUD and TPMS, the drivers can drive without lower his head, and keep track of the vehicle dynamics, but also can see the vehicle tire state. The TPMS with LCD color display can make the vision clearly. Combined with HUD, the functions of the TPMS include air leak alarm, low voltage alarm, high voltage alarm, high temperature alarm, and sensor low electricity alarm. The LCD display panel function can makes the you see more clearly in the daytime, more faster and convenient to use. The more user-friendly design with the design concept of the slope type of high front and low back, can effectively protect people's eyes, and prevent intense light exposure to the human eyes. It can automatically adapt to OBD II or EUOBD (vehicular automatic detection system) models, and can be used as long as being plugged.
Specifications:
Condition: Brand New
Color: Shown as Picture
Material: ABS
Screen size: 3 inch

Usage:

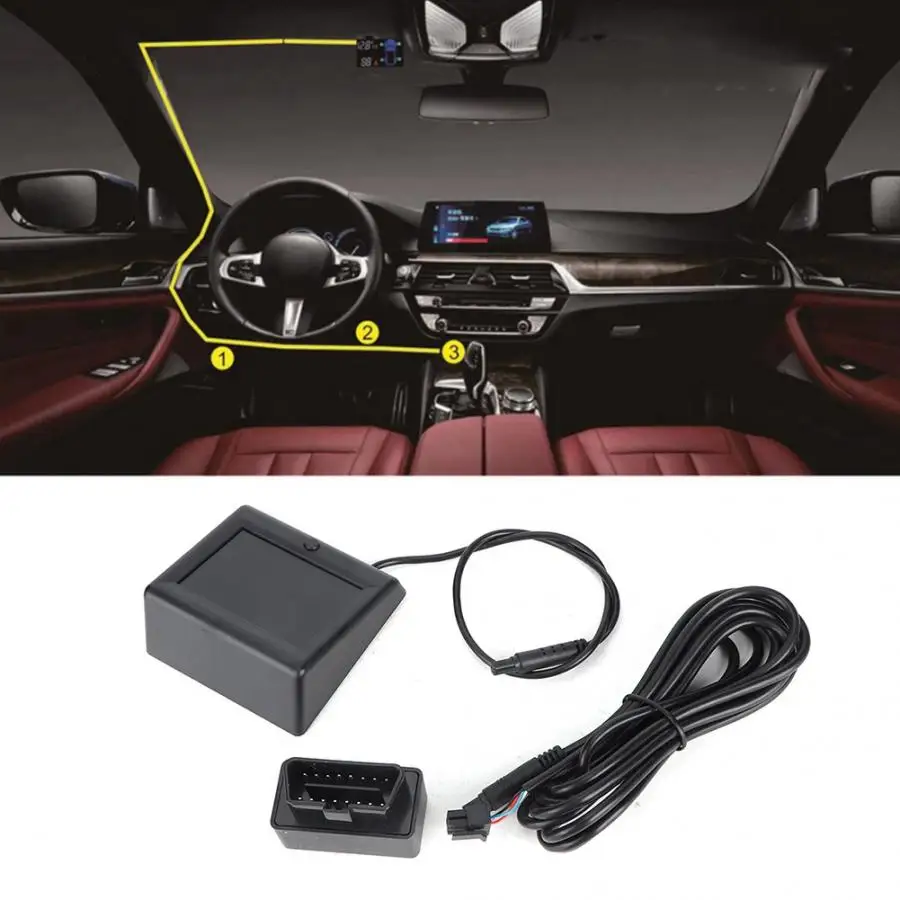

1. Find the OBD interface location of a vehicle. The OBD interface of a general vehicle is at the position 1.2.3 shown in the figure.
2. Yellow line schematic diagram: arrange the connection wire between OBD host and LCD display screen.

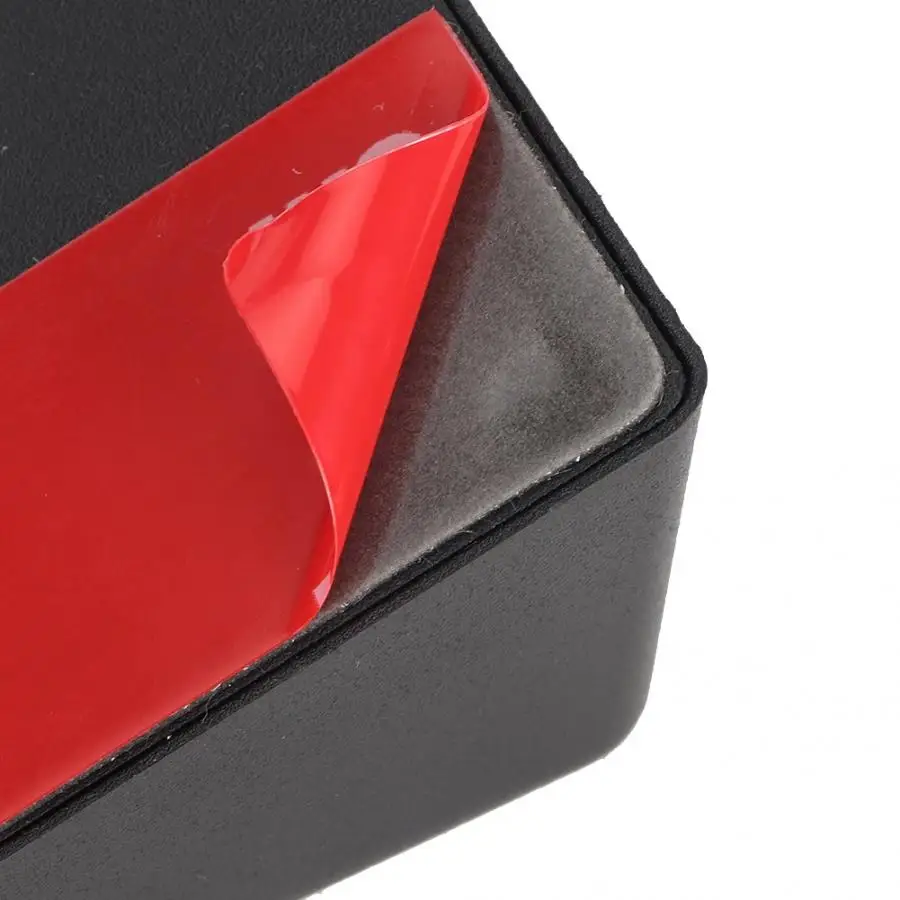

3. Glue the LCD display screen to the upper part of the windshield near the middle position, and insert the cable.
4. Plug the OBD main engine into the other end of the extension cord, and then plug the OBD main engine into the OBD interface of the vehicle.
5. Part of the car needs to connect the gateway, so plug the other end of the gateway into the OBD after connecting the gateway line
On the host, plug the OBD host into the OBD interface of the original vehicle and start the vehicle.
6. Charge 4 tires of the vehicle to normal tire pressure.
7. Start the vehicle, long press the learning reset key on the LCD display for 2 seconds, and the vehicle basically keeps in a straight line
Drive about 2KM, learning can be completed, at this time, the system enters the normal operation state.
8. When the tire pressure is abnormal, it will give out an alarm sound of beep beep, and at the same time, it will be on the LCD display screen
The tire should show red, TPMS symbol flashing, please replace or repair the tire immediately.
9. Repeat items 6 and 7 after tire replacement.

Package List:
1 * LCD Screen
1 * OBD
1 * Power Line
1 * Manual
